LED Dance Floor Screen

In addition to the stage interpretation, LED dance floor Led display are suitable for commercial retail, bars, smart teaching, stadium construction, medical etc.

产品详情

 Hot Sale Indoor and Outdoor P4.81 LED Dance Floor for Event Rentals



Product Description

1.Professional Mask With Unique Design

The module mask is made of imported PC material with high transparency and wear resistance, and processed by special technology. It has the following advantages: ● Good transparency: NO color differences with any viewing angle. ● Skid -resistant, wear - resistant, non - reflective, high - heeled shoes are allowed. ● UV resistance: It still maintains the original color after many years of sunlight. ● Professional anti-blunt and anti-scratch mask design that gurantee a long working life for LED floor screen.

2. Cabinet With Quick Maintenance

The maintenance tool is designed like suction mount, which can change new module in 3 seconds to improve maintenance efficiency.



4. Anti-slidding and anti-glare:The Surface adopts special masks and acrylic board to prevent slidding and anti-glare.







5. High capability of load-bearing:Professional structure for the heavy bearing.The capability of load-bearing could be reach 2tons/sqm, its available for car driving above sceen when floor screen working.






6.High protection level: Waterproof IP65, suitable for both indoor and outdoor use.





7.Application:  Multi-media room, Exhibition Show, Conference room, shopping mall, stage show, event show, bars, clubs, etc entertainment.



Technical Parameters of P4.81 LED Dance Floor Screen





LED Specifications
1 Type SMD
2 LED Standard Real Pixel(1R1G1B)
3 Red Wavelength 625-630nm
4 Green Wavelength 515-530nm
5 Blue Wavelength 465-475nm
Module Specifications
1 Pixel Pitch 4.81mm
2 Resolution 52x52dots
3 Module size 250x250mm
Cabinet Specifications
1 Cabinet Size(W*H) 500x500mm
2 Cabinet Resolution 104x104dots
3 Pixel Density 43222dots/㎡
4 Cabinet Weight ≤6.5kg
5 Material die casting aluminum
6 Flatness of cabinet ≤0.3mm
Screen Parameters
1 Color /Brightness Calibration Yes
2 Color Temperature(K) 3000-10000
3 Light Centre Distance Deviation <3%
4 Brightness Uniformity ≥97%
5 Color Uniformity Within ±0.003C×,Cy
6 Contrast Ratio 5000:1
7 View Angle Horizontal160°/ Vertical 140°
8 Input Voltage AC100~240V(50-60Hz)
9 Power Consumption Max:800w/㎡ Avg:280w/㎡
10 Driving Method 13 scaning
11 Protection Level IP65 waterproof
12 Grey Scale Levels R(256) G(256) B(256)
13 Life Span 100,000 Hrs
14 Temperature-Operating -20 — 40℃
15 Humidity-Operating 10 - 99%
16 Features anti-slip,anti-collision,big load-bearing capacity
17 Usage led floors, led wall background
18 Display function txt, picture, video

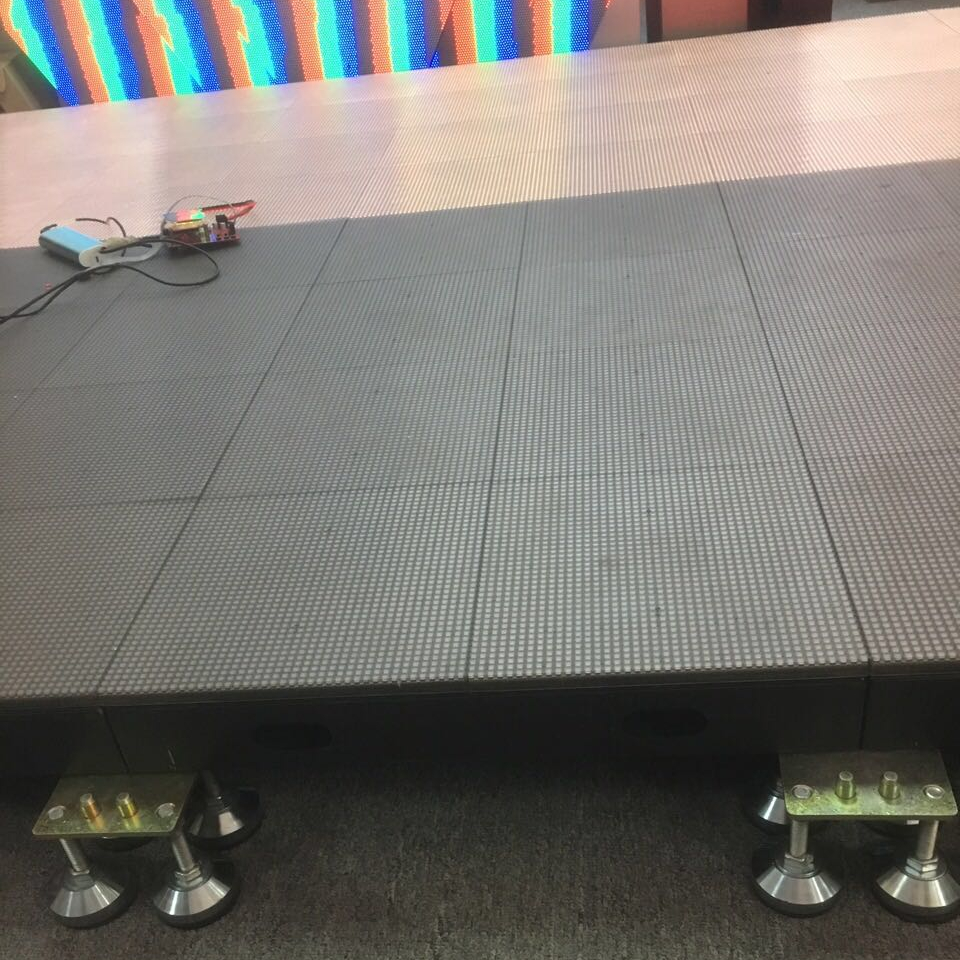

Installation Picture













Installation Picture

1.Select the load-bearing, high transmittance PVC mask, bottom shell
2.SMT high-speed SMD technology will be 3528 lamp beads package on the PCB board
3.Lock the mask pan and module with stainless steel screws
4.Use a professional standard box to lock the module with stainless steel screws
5.Using pure copper wire and aviation plug to connect the box
6.Use high load-bearing tokens to join each cabinet as required
7.Use the synchronization control software to connect the screen to the computer, debug and light up
8.Stainless steel wrapping around the screen body wrapped well

Buying Guides

In order to offer you a suitable solution, please follow the guides bellowing :
1,Star effect or video effect which you need.
2,Dimension (Width and Height)
3,Location of installation. (picture is best)
4,Purpose. ( what are you going to do with the LED Curtain)



After-Sales Service



1. Three year warranty , Lifetime free maintenance.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on
6. Special service for big project, such as stadium, exhibitions, squares and so on.







Factory Introduction







Packing& Shipping

Wooden case, Poly Case or Flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
