P8 stadium ironed steel led display
SCXK P8 stadium led screen：
1. The new structure design meets the three installation requirements of fence, hoisting and stacking. It can be used for different applications in different situations and can meet various application requirements of users. It is simple and convenient to use.
2. The new color matching, the black and silver of the cabinet reveals the stability and dignity.

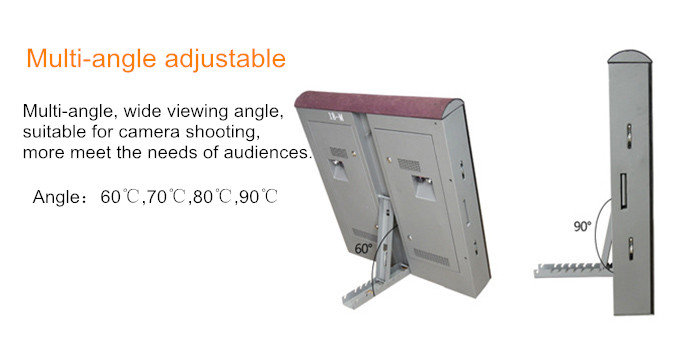

3. Adjustable angle rear bracket, the user can arbitrarily adjust the viewing angle of the display to achieve the best display effect. When lifting or stacking, it can be retracted and fixed on the box.
4. The top cover design adopts Japanese imported materials to protect the top and has a good impact force buffer to effectively protect the athlete from harm.
5. Brand-new hoisting structure can effectively adjust the splicing gap when the box is hoisted and installed.
Application:
Stadiums, basketball halls, football fields and other occasions.
| model | P8 | |
| Pixel unit module | Pixel pitch(mm) | 8 |
| Pixel density (dots/sqm) | 15625 | |
| LED type | SMD | |
| Module size(mm) | W256×H128 | |
| Pixel composing | RGB full color | |
| Pixel unit screen | screen size(mm) | 1024*768mm |
| module Resolution (nits) | 32*16 | |
| Cabinet structure | Water-proof | |
| installation | fixed on the back | |
| screen material | magnesium alloy | |
| Protect degree | IP65 front ,IP54 rear | |
| Viewing distance(m) | 8~100m | |
| Brightness(cd/sqm) | 7000 cd/sqm or 7000 nits or more | |
| Power consumption (w/sqm) | Max 900W/sqm ,can be custom make 500W max | |
| Driving IC | 1/4 scan MBI Brand Driver | |
| Refresh rate(HZ) | ≥2000- 3000 | |
| Viewing angel(c) | H120 V110 | |
| Other parameter | Image adjustment | contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc |
| Image processing | Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc | |
| Brightness uniformity | The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9 | |
| Gray | 65536 | |
| Color temperature/contrast | Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need | |
| Transmitting Distance | The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers | |
| Input Signal | RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION | |
| Control System | PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer | |
| Average No Failure Time | 20000 hours | |
| Life span | 100,000 hours | |
| Out-of Control rate | 0.0001 | |
| To floor drain current | Less than 3.5MA | |
| Control system | Synchronized | |
| Operating Environment Temperature | -20°C—65°C Optional |
|
