P6 Die Casting Aluminum

Rental LED display features: ★ High resolution and high pixel density, true reproduction of high-definition images; ★ With high refresh rate and high gray level, the picture is more realistic and meets the requirements of high visual quality for

产品详情

Rental LED display features:

★ High resolution and high pixel density, true reproduction of high-definition images;

★ With high refresh rate and high gray level, the picture is more realistic and meets the requirements of high visual quality for commercial use;

★ With a photosensitive control system, according to the change of indoor and outdoor light automatically adjust the display brightness, energy saving and environmental protection, reduce operating costs;

★ With brightness, color point-by-point correction function, so that the LED display screen is more abundant, to meet the high visual quality requirements of commercial use; and can make different batches of screen body mixed use;

★ High-quality aviation-grade connectors: The plugs and sockets of the power supply and signal cables have high reliability, good connection continuity, high insertion and removal times, and quick and easy removal and insertion; common components make it easy to identify and exchange;

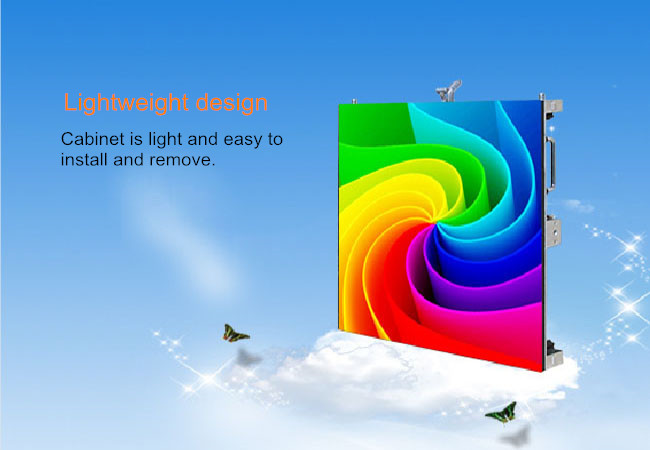

★ Ultra-thin and high-precision box: 65mm, die-casting aluminum box made of CNC precision machining, its size tolerance is less than 0.2mm, with a special shading design to ensure smooth and seamless splicing between the box, standard design, can be arbitrary assembly, High-grade appearance;

★ Exquisitely hanging and side-locking components: high-strength box interconnecting components, not easily deformed, accurate alignment, can achieve seamless splicing, easy disassembly, saving labor costs;

★ The product launch has a set of low-power solutions, which can make the display run 1/3 of energy-saving than before, further reducing your operating costs;

★ equipped with professional audio and video processing system to support the processing of a variety of signals on the stage, from the signal processing to ensure the quality, making it possible to play high-fidelity image signals, can achieve live broadcast;

★ With a variety of air box, easy storage and transport of the box, and the LED display has played a very good protection;

★ The outdoor model has good waterproof effect and has IP65 protection level, suitable for outdoor use;

★ According to customer requirements and site environment, tailor the most appropriate LED display solutions;

Module show

Power supply show

Specification

Pixel Pitch

6mm

Pixel Density

27777dots/sqm

Color Configuration

1R1G1B

LED Package

SMD3535

Module Size

192mm x 192mm

Module Resolution

32dots x 32dots

Drive Mode

1/8 Scan, Constant Current

Brightness

>1200cd/sqm

Viewing Angle

H: 140°; V:140°

Refresh Rate

1500HZ

Frame Rate

120frame/sec

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10%,  50HZ

Max Power Consumption

900W/sqm

Ave. Power Consumption

300W/sqm

Working Temperature

-20℃~+65℃

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof

IP65

Operating Humidity

10%~95%

Control System

Synchronous, 3G, WIFI, USB

Control PC

With DVI Graphic card

PC Display Resolution

1280x1024

Operating System

Win 98, Win2000, XP, Win7 ,Win8, Win10.etc

Video Signal Mode

RF,S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS



Installation case
