P5 Die Casting Aluminum
The LED rental display is a custom-designed die-cast aluminum box design that is light, thin, and quick to install as its most important feature. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for la
The LED rental display is a custom-designed die-cast aluminum box design that is light, thin, and quick to install as its most important feature. The cabinet is light and thin, can be quickly installed, removed and transported, and is suitable for large-area rental and fixed installation applications. It adopts synchronous control system to process and accept various video input signals such as DVI, VGA, HDMI, S-video, composite, YUV, etc., and can play video, graphic and other programs at will, playing in real time, synchronous, and clear information transmission mode. Various information. Realistic colors, strong adaptability. Mai Rui LED rental display has the following advantages:

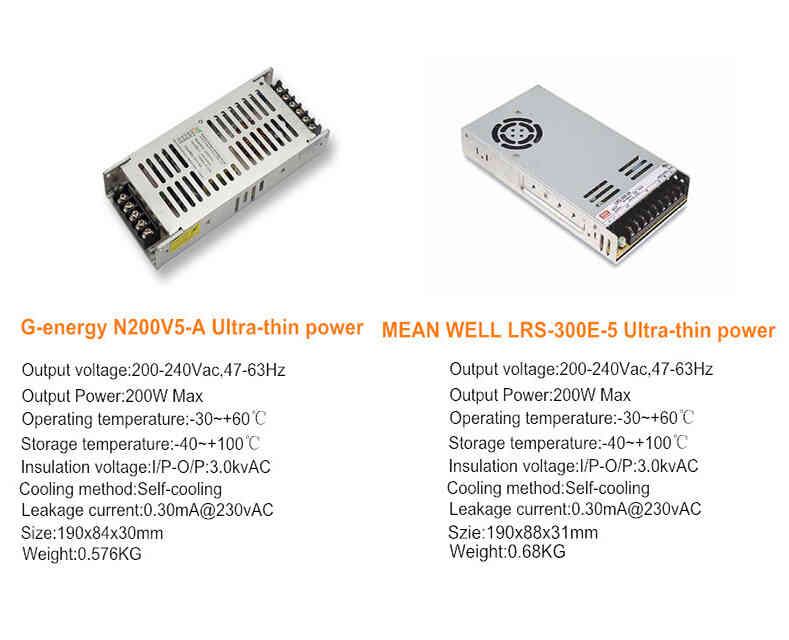

Power supply show
Specification
| Item Model | IR5 |
| Pixel Pitch | 5mm |
| Resolution(W*H) | 64dots*32dots |
| Module Size (W*H) | 320mm*160mm |
| Panel Size (W*H) | 640mm*640mm |
| Pixel Density | 40000dots |
| Driving Method | 1/16 or 1/8 scan |
| Brightness | 1500nits |
| Protection Level | IP43 |
| Refresh Rate | >1920HZ |
| Color Temperature | 8000K±500(adjustable) |
| Viewing Angle | Horizontal 130°Vetical 100° |
| Optimal Viewing Distance | >5m |
| Max Power Consumption | 300W/panel |
| Ave Power Consumption | 150W/Panel |
| Viewing Angle | 140°(H)/140°(V) |
| Gray Scale | ≥14bit |
| Application | Indoor |
| Color Type | 68 billion |
| Controller | Synchronous Display with control PC by DVI |
| Power Supply | AC90-264V±10% |
| Working Environment | Temperature -10℃++50℃,humidity 10-90% RH |
| Color Temperature | 8000K |
| Life time | >50,000 hours |
| Operating Temperature | –10℃ ~ 65℃ |
Installation case
