P8 Outdoor Led Display

The outdoor display uses super grayscale control technology, modular structure design and ultra-large-scale integrated circuit design technology, which greatly improves the stability, reliability and playback performance of the display screen system.

Online Message

产品详情

What are the advantages of outdoor LED display?

1. Strong visual impact

The large-sized, dynamic, audio-visual LED advertising can fully activate the audience senses, effectively convey information and guide consumption.

2. Wide coverage

Outdoor LED displays are generally installed and installed in shopping malls and other areas where traffic is concentrated. Through high-frequency communication with the user community, it stimulates consumers' strong desire to purchase and increase brand awareness.

3. Long release period

Outdoor LED advertising can be played around the clock. It's easier for the audience to see it. It can better guide the potential customers and enable them to achieve better publicity results with less cost.

4. Low Audience Responsiveness

Outdoor LED advertising can use real-time technology to broadcast programs to more audiences in real time. Including special topics, columns, variety shows, animations, radio dramas, TV dramas, etc., with rich content, avoiding contact barriers caused by the conscious and active avoidance of advertising audiences.

5. Energy saving and environmental protection

The LED display's light-emitting components are LEDs. Since the power of a single LED is very low, it is generally 0.04~0.08W, and the power is several times lower. The effect is much better. The material of the LED display screen is the environmental protection material used, which belongs to the recyclable type and will not cause pollution and damage to the environment due to the large amount of use.

6. Release information is simple and convenient

By connecting to a computer via a data cable connection or a wireless communication method and setting it on a computer, advertising content can be published, which is convenient and fast.

P8 outdoor led display high protection, dust, waterproof, anti-corrosion

Adopts a special waterproof module for outdoor use and an extremely well-sealed waterproof box. It is not necessary to worry about the unique mask design of water-vapor-eroding screens. It is dust-proof, waterproof, and corrosion-proof. The protection level is up to IP65.

Energy saving, cost-effective

Led display light-emitting materials themselves are energy-saving products, configure dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be adjusted automatically.

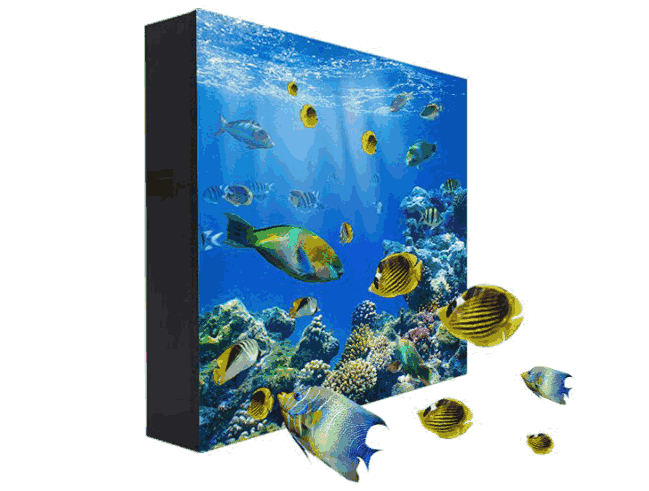

Ultra-high uniformity, relieve eye fatigue

Wavelength deviation can be controlled within ±2nm, chromaticity and brightness consistency up to 99%, flatness ±0.1mm, splicing gap <0.2mm, so that the color uniformity and consistency are excellent.

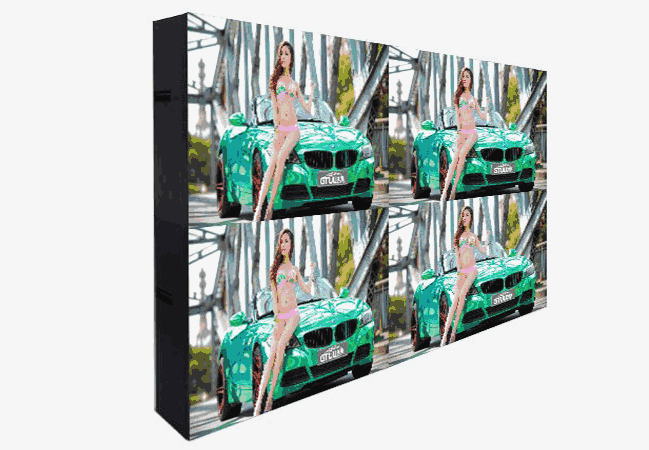

Seamless stitching

Finished standard box, there is no obvious gap between boxes.

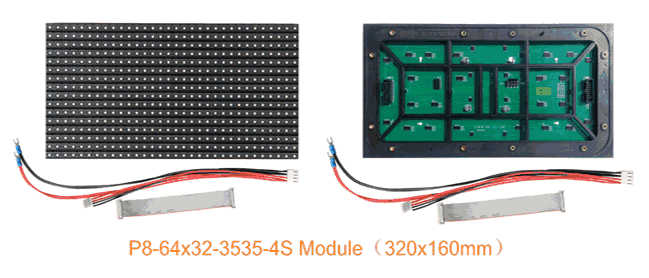

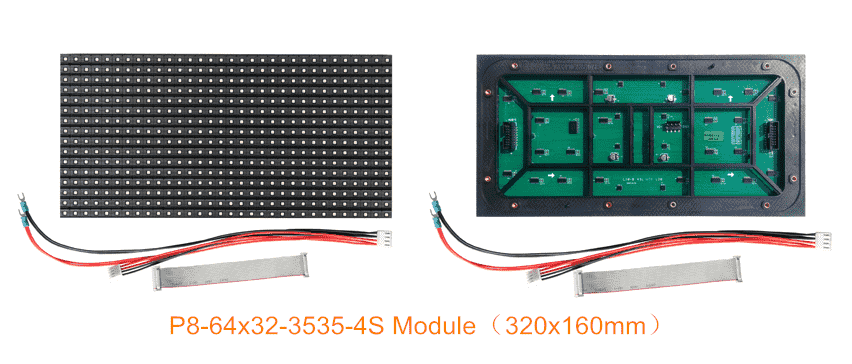

Waterproof Module

Paremeter specification

model		P8
Pixel unit module	Pixel pitch(mm)	8
	Pixel density (dots/sqm)	15625
	LED type	SMD
	Module size(mm)	W256×H128
	Pixel composing	RGB full color
Pixel unit screen	screen size(mm)	1024*1024mm
	module Resolution (nits)	32*16
	Cabinet structure	Water-proof
	installation	fixed on the back
	screen material	magnesium alloy
	Protect degree	IP65 front ,IP54 rear
	Viewing distance(m)	8~100m
	Brightness(cd/sqm)	7000 cd/sqm or 7000 nits or more
	Power consumption (w/sqm)	Max 900W/sqm ,can be custom make 500W max
	Driving IC	1/4 scan MBI Brand Driver
	Refresh rate(HZ)	≥2000- 3000
	Viewing angel(c)	H120 V110
Other parameter	Image adjustment	contrast, tonal, the color saturation, gray calibration coefficient, color range, image variable times, etc
	Image processing	Video noise reduction, fast motion compensation, edge to sharpen, edge smooth, color space transformation and control, coordinate transformation of grey scale, etc
	Brightness uniformity	The whole screen on the monochrome, minimum pixel luminance and the brightest pixel luminance than more than 0.9
	Gray	65536
	Color temperature/contrast	Red, green, and blue brightness and contrast can through the software level 100 adjustable, color temperature can be adjusted according to need
	Transmitting Distance	The shielded twisted-pair cable transmission distance for 100 meters, the biggest up to 140 m. Multimode fiber of up to 500 meters, the single-mode optical fiber to 20 kilometers
	Input Signal	RF,S-VIDEO,RGBTV,YUT,YC,COMPOSITION
	Control System	PCTV non-liner editing card+DVI display card+main control card+optic fiber transmission(Optional) or video dealer
	Average No Failure Time	20000 hours
	Life span	100,000 hours
	Out-of Control rate	0.0001
	To floor drain current	Less than 3.5MA
	Control system	Synchronized
	Operating Environment Temperature	-20°C—65°C Optional

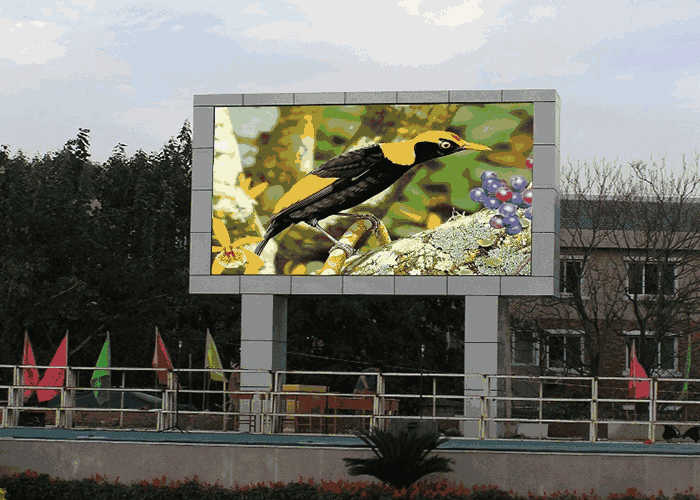

Installation case
