P6 Outdoor Led Display

P6 outdoor advertising led screen Features: 1, fine quality: dynamic scanning technology, the picture is stable, no noise, the image is clear and delicate, vivid and diverse animation effects; video effects smooth, realistic.

产品详情

                                                                          P6 outdoor advertising led screen

Features:

1, fine quality: dynamic scanning technology, the picture is stable, no noise, the image is clear and delicate, vivid and diverse animation effects; video effects smooth, realistic.

2, wide viewing angle: 120 ° viewing angle, horizontal distribution and The environment with a large height difference is suitable.

3. The performance is stable: The distributed scanning technology and the modular design technology are adopted. The reliability and stability are higher.

4. The long lifespan: The high-quality LED components and independent research and development are adopted. Circuit board design ensures the service life of the product.

5, seamless splicing: the splicing error is controlled within plus or minus 0.1mm, easy to install, and can be made into any shape according to customer needs.



                                                                  Energy saving, cost-effective

Led display light-emitting materials themselves are energy-saving products, configure dedicated constant current drive, energy-saving IC and high conversion rate drive power, and the brightness can be adjusted automatically.

Ultra-high uniformity, relieve eye fatigue

Wavelength deviation can be controlled within ±2nm, chromaticity and brightness consistency up to 99%, flatness ±0.1mm, splicing gap <0.2mm, so that the color uniformity and consistency are excellent.

Seamless stitching

Finished standard box, there is no obvious gap between boxes.

Specification

Pixel pitch 6mm
Pixels 32*32dots

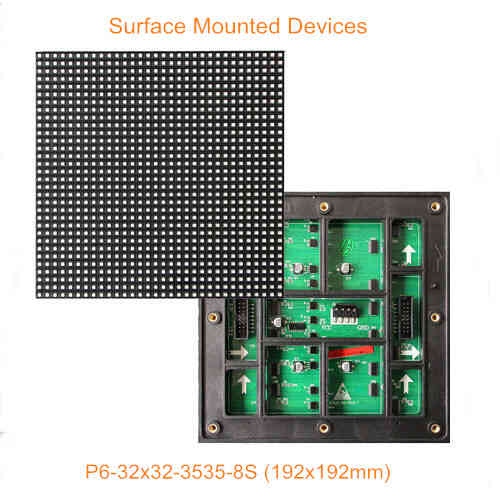

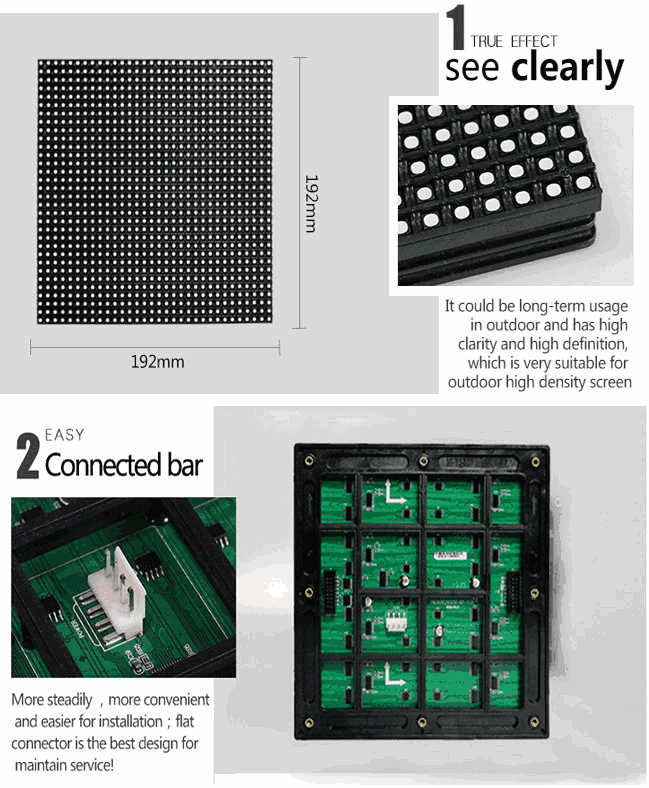

Module size 192*192mm
Pixel configuration 1R1G1B
Pixel density/m² 27777
Driving mode Constant current 1/8 scanning
Cabinet material Die-cast aluminum
Cabinet size 576*576mm
LED specification smd3535
Brightness 6000cd
Best perspective 120°/120°
Best viewing distance ≥6mm
Maximum power:/㎡ 780W
Average power:/㎡ 290W
Voltage AC 220V±10, 50Hz
Storage temperature minus40℃~ plus85℃
Relative humidity 10%~95%
Working temperature minus10℃~plus50℃
Lifespan 100000 hours
Mean Time Between Failure ≥10000 hours
Gray scale 16bit
Frame rate ≥60Hz
Image refresh ≥240Hz
Bright adjustment Automatic / manual ≥ 256 level




Installation
